Sun Grid Engine

My SGE installation process.







Links basics

Com funciona

User level
Admnistració
Instalació



Hands on

Install
checklist


User accounts

Note
To use SMF on Solaris 10 or later hosts and run the Grid Engine software as an unprivileged user, perform the following additional steps as root user (or user with appropriate permissions):
For a local user:

  1. Create the new role sgeadmin:
    roleadd -c "Grid Engine SMF Administrator" -g <group> -d <home_dir> -u <UID> -s <profile_shell> -P "solaris.smf.manage.sge" "sgeadmin"
  1. Assign the just-created role sgeadmin to the user:
    usermod -R "sgeadmin" <login>

For a distributed name service, such as NIS, NIS+, or LDAP:

  • Create the new role sgeadmin and assign it to the user:
    /usr/sadm/bin/smrole add -D <domain_name> - -n "sgeadmin" -a "normal_user" -d <home_dir> -c "Grid Engine SMF Administrator" -p "solaris.smf.manage.sge"
Network services

Determine whether your site’s network services are defined in an NIS database or in an /etc/services file that is local to each workstation. If your site uses NIS, determine the host name of your NIS server so that you can add entries to the NIS services map.

The Grid Engine system services are sge_execd and sge_qmaster. To add the services to your NIS map, choose reserved, unused port numbers. The following examples show sge_qmaster and sge_execd entries.

sge_qmaster 6444/tcp
sge_execd 6445/tcp

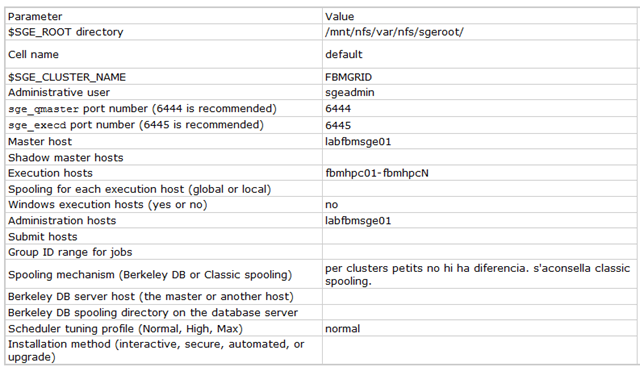

Installation
Master host
Execution hosts
NFS
  • server
    apt-get -y install nfs-kernel-server nfs-common portmap
echo "/var/nfs        172.16.33.0/24(rw,sync,no_subtree_check)" >> /etc/exports
exportsfs -a
  • client
    apt-get -y install nfs-common portmap
echo "172.16.33.21:/var/nfs /mnt/nfs/var/nfs  nfs     rw,sync,hard,intr       0      0" >> /etc/fstab
mkdir -p /mnt/nfs/var/nfs ; mount -a
  • permisions
    addgroup sgeadmin
adduser -c "Grid Engine SMF Administrator" --home /home/sgeadmin -g sgeadmin  sgeadmin
chown -R sgeadmin.sgeadmin /var/nfs/sgeroot

** Tots els nodes i/o masters han de tenir l’usuari sgeadmin

Edició de hostnames
HOSTNAME=%NOMMAQUINA% ; export HOSTNAME
 sudo sed -i "s/kickseed/$HOSTNAME/g" /etc/hosts
 sudo sed -i "s/kickseed/$HOSTNAME/g" /etc/hostname
 sudo hostname -v $HOSTNAME
Instalació del Master
  • Entorn: ** Variables entorn
    echo "
SGE_ROOT=/mnt/nfs/var/nfs/sgeroot
export SGE_ROOT" >> /home/sgeadmin/.bashrc

    ** hostname

    sed -i "/`hostname`/s/127.0.1.1/`ifconfig | awk '/Bcast/ {print $2}'|cut -d: -f2`/g" /etc/hosts
  • Descomprimir:
    gzip -dc ../sge/ge-6.2u5-common.tar.gz | tar xvpf -
gzip -dc ../sge/ge-6.2u5-bin-lx24-amd64.tar.gz |tar xvpf -
gzip -dc ../sge/ge-6.2u5-bin-lx24-x86.tar.gz |tar xvpf -
gzip -dc ../sge/ge-6.2u5-bin-lx24-ia64.tar.gz |tar xvpf -
  • Software necessari per a la intalació
    apt-get install binutils sun-java6-jre
  • Iniciar la instalació (as root)
    cd $SGE_ROOT
./inst_sge -m
  • JMX MBean server config
    Using the following JMX MBean server settings.
   libjvm_path              >/usr/lib/jvm/java-6-openjdk/jre/lib/amd64/server/libjvm.so<
   Additional JVM arguments >-Xmx256m<
   JMX port                 >6446<
   JMX ssl                  >true<
   JMX client ssl           >true<
   JMX server keystore      >/var/sgeCA/sge_qmaster/default/private/keystore<
   JMX server keystore pw   >*********< ;)   .
  • Berkeley Database spooling parameters
    Berkeley Database spooling parameters
-------------------------------------

You are going to install a RPC Client/Server mechanism!
In this case, qmaster will
contact a RPC server running on a separate server machine.
If you want to use the SGE shadowd, you have to use the
RPC Client/Server mechanism.


Enter database server name or
hit <RETURN> to use default [labfbmsge01] >>

Enter the database directory
or hit <RETURN> to use default [/mnt/nfs/var/nfs/sgeroot/default/spooldb] >>
creating directory: /mnt/nfs/var/nfs/sgeroot/default/spooldb
Please remember these values, during Qmaster installation
you will be asked for! Hit <RETURN> to continue!

The Berkeley DB installation is completed now!
If you are using a Berkely DB Server, please add the bdb_checkpoint.sh
script to your crontab. This script is used for transaction
checkpointing and cleanup in SGE installations with a
Berkeley DB RPC Server. You will find this script in:
/mnt/nfs/var/nfs/sgeroot/util/

It must be added to the crontab of the user (sgeadmin), who runs the
berkeley_db_svc on the server host.

e.g. * * * * * <full path to scripts> <sge-root dir> <sge-cell> <bdb-dir>
  • Sgeadmin Keystore => minim 6 lletres => 123456 leters 😉
  • Using Grid Engine
    Using Grid Engine
-----------------

You should now enter the command:

   source /mnt/nfs/var/nfs/sgeroot/default/common/settings.csh

if you are a csh/tcsh user or

   # . /mnt/nfs/var/nfs/sgeroot/default/common/settings.sh

if you are a sh/ksh user.

This will set or expand the following environment variables:

   - $SGE_ROOT         (always necessary)
   - $SGE_CELL         (if you are using a cell other than >default<)
   - $SGE_CLUSTER_NAME (always necessary)
   - $SGE_QMASTER_PORT (if you haven't added the service >sge_qmaster<)
   - $SGE_EXECD_PORT   (if you haven't added the service >sge_execd<)
   - $PATH/$path       (to find the Grid Engine binaries)
   - $MANPATH          (to access the manual pages)
  • autostart qmaster y bdb on boot as sgeadmin (dona un warning pero no passa res perque només ens interessa el runlevel 2 i en un futur potser el 5)
    echo "sudo -u sgemaster /etc/init.d/sgemaster.FBMGRID " >> /etc/rc.local
echo "sudo -u sgemaster /etc/init.d/sgebdb start " >> /etc/rc.local
sed -i "s/exit 0//g" /etc/rc.local
echo "exit 0" >> /etc/rc.local
cat /etc/rc.local

qmon

no funcionava i he hagut d’executar el  següent:

source /mnt/nfs/var/nfs/sgeroot/default/common/settings.sh

I ara comença lo divertit, afegir nodes respectant permisos i que funcionin. Despres les cues.

Enjoy.



Author: Marc
